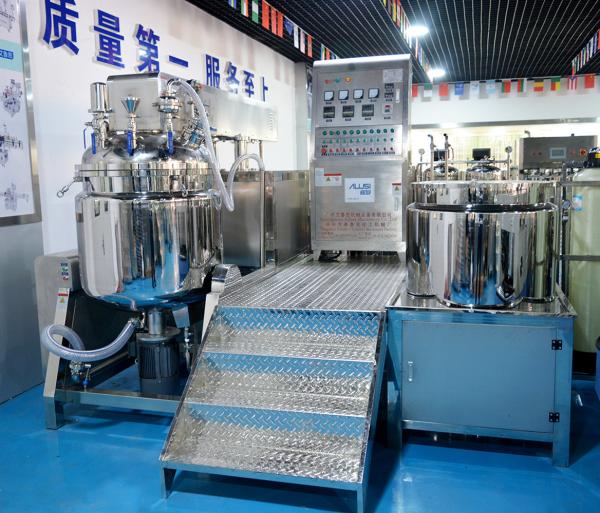

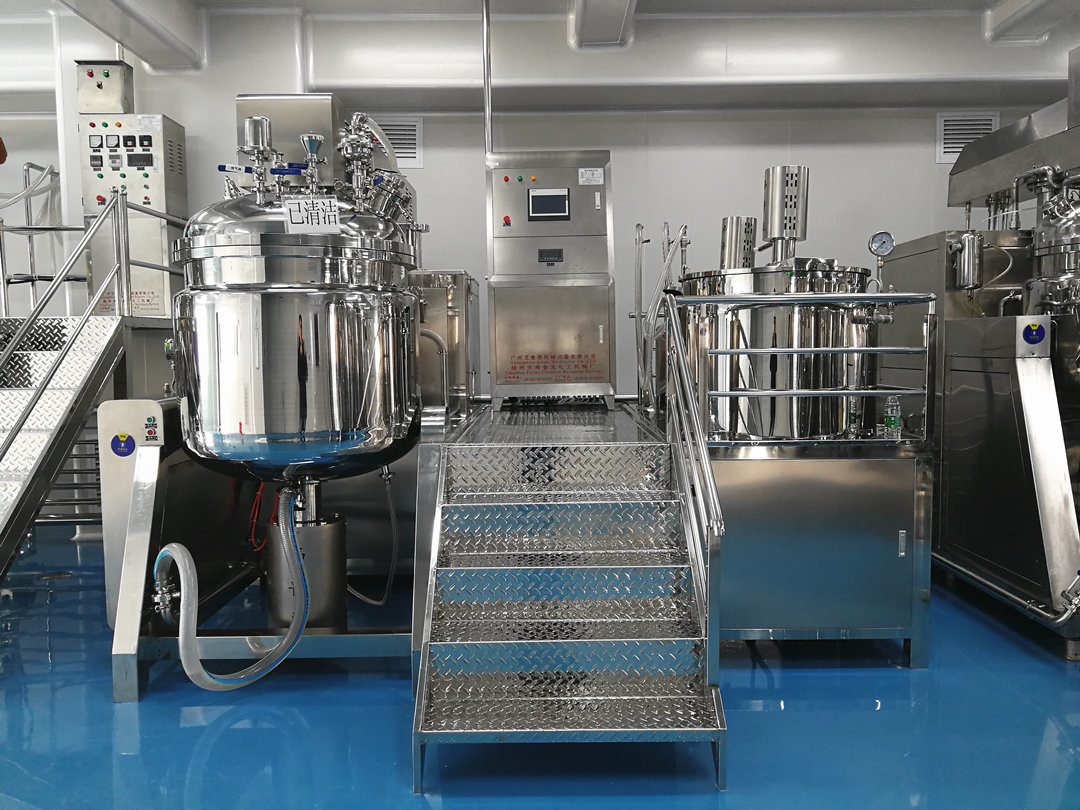

lift type vacuum emulsifier making machine with top homogenizer
Vacuum pump can be equipped to carry out vacuum defoaming (optional)Bottom installation type dispersing head and pipeline type emulsifying head are optional to speedup dissolution and emulsification of materials The stainless steel electric control cabinet can completely supervise the operation of equipment, and display data, such temperature and blending rotation speed etc.
Vacuum Mixing Machine Capacity: 50L-5000L and other general specifications and non-standard design and production.
The Emulsifying Tank lid adopts a Vacuum system, easy to clean, the emulsifying tank can adopt Positive pressure discharge.
The vacuum defoaming can make the materials meet the requirement of being aseptic. The vacuum material sucking adopted can avoid dust.
PTFE scraping board cater to the body of blending groove and scrape out viscosity material on the boiler wall.
Homogenizer is installed on the Vacuum Making Machine bottom to increase motor power more thoroughly and strongly. During a few productions, it can exert the homogenizing effect fully.
Mightiness balance isotactic curve rotor is matched with the stator to realize liquid high-capability cut, rubbing, centrifugal to make sure exquisite and slick cream.
Boiler body and pipe surface mirror polishing 300 mesh (sanitation grade) accord with Daily chemical and GMP regulation.
SIEMENS frequency converter for speed adjustment of 0-3000 rpm, which can meet the production of different technology requirements.
Burgmann mechanical sealing for Vacuum Mixing Making Machine, good sealing effect, and long working life. Material contact parts all use SUS316L stainless steel.
Main Features:
Lip Parts for Fixed Type Vacuum Mixer:
Beautiful parts design and high practicability.
| capacity (L) | Agitator power (kW) | Speed (rpm) | Homogenizer power (kW) | Speed (rpm) | Oil/Water tank (L) | Agitator power (kW) | Speed (rpm) | Hydraulic (KW) |
| 50 | 1.5 | 0~75 | 2 | 0~3600 | 20/45 | 0.37/0.37 | 0~1440 | 0.75kw |
| 100 | 2.2 | 0~75 | 3 | 0~3600 | 40/90 | 0.55/0.55 | 0~1440 | 0.75kw |
| 200 | 3 | 0~75 | 5.5 | 0~3600 | 80/180 | 0.75/0.75 | 0~1440 | 1.1kw |
| 300 | 4 | 0~75 | 5.5 | 0~3600 | 120/270 | 1.1/1.1 | 0~1440 | 1.5kw |
| 500 | 4 | 0~75 | 7.5 | 0~3600 | 200/450 | 1.5/1.5 | 0~1440 | 1.5kw |
| 1000 | 5.5 | 0~75 | 11 | 0~3600 | 400/900 | 2.2/2.2 | 0~1440 | 2.2kw |
| 2000 | 7.5 | 0~75 | 15 | 0~3600 | 800/1800 | 2.2/2.2 | 0~1440 | - |
| 3000 | 11 | 0~75 | 18.5 | 0~3600 | 1200/2700 | 3/3 | 0~1440 | - |
